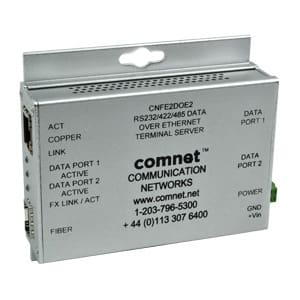

Comnet : CNFE2DOE2

FEATURES

  • Environmentally Hardened -40º to +75ºC
  • Two RS232/422/485 selectable serial ports
  • NTCIP compatible
  • Basic flow control/handshaking (Request-to-Send & Clear-to-Send) is included, when this device is used with RS232compatible equipment requiring this functionality.
  • The two serial ports may be configured by the user for communicating from one port to the other through either the user’s network, or via a PC.
  • Serial data appearing on either of the two serial data ports is converted to Ethernet, and transmitted to both the SFP and RJ-45 ports, permitting the unit to be simultaneously used as a media converter and a terminal server.
  • Easy configuration through web interface (HTTP)
  • Port control and management supported by open source com0com and com2TCP
  • By selecting the appropriate ComNet SFP, a copper or optical interface may be used to achieve the desired optical transmission distance, using one fiber with WDM, or two separate multimode or single mode fibers.
  • Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • Packaged in the ComNet “middle-sized” housing, the CNFE2DOE2 is ideal for those installations where space may be limited, and it may be DIN-rail mounted by the addition of the DINBKT1 Adaptor Plate.
  • Power and Port status LED indicators
  • Automatic resettable solid-state current limiters
  • Lifetime Warranty

Product Description

The ComNet CNFE2DOE2 allows any combination of two RS-232, RS-422, or 2 or 4-wire RS-485 serial data circuits to be inserted onto any 10/100 Mbps Ethernet-based network. Basic flow control/handshaking is included, when this device is used with RS232-compatible equipment requiring this functionality. The CNFE2DOE2 includes two serial data input/output ports, and two Ethernet ports; one accepting an SFP, and the other an RJ-45. The two serial ports may be configured by the user for communicating from one port to the other through either the user’s network, or via a PC. It may be used as a protocol converter or as a media converter, for converting copper transmission media to fiber. Serial data appearing on either of the two serial data ports is converted to Ethernet, and transmitted to both the SFP and RJ-45 ports, permitting the unit to be simultaneously used as a media converter and a terminal server. A remote user and a local user can access at the same time local serial data devices connected to the serial data ports. Configuration of this device is performed through its internal web server. These models require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. A software utility feature allows the user to locate other CNFE2DOE2 terminal server devices installed within the same subnet, and to create virtual communications ports for each serial port on the device. Com0com shareware is also included, allowing the user to create a virtual serial port on their PC, and then connect the PC to a TCP/IP connection using the com2tcp utility. The use of these two utilities enables communications through an Ethernet network to the CNFE2DOE2, and provides control of the remote hardware, as if it were connected directly to the PC COM port. Packaged in the ComNet middle-sized housing, the CNFE2DOE2 is ideal for those installations where space may be limited, and it may be DIN-rail mounted by the addition of the DINBKT1 Adaptor Plate.
