Comnet : CNFE2MC2C/M

FEATURES

  • 10/100 Mbps Ethernet
    • 10/100 BASE-T/TX electrical port
    • 100 BASE-FX optical port
  • Two Bi-Directional Contacts
  • Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
  • Optical port supports 100 Mbps full duplex data
  • Automatic MDI/MDI-X crossover
  • Distances up to 80 km with optional SFPs for fiber type, distance and connector (ordered separately)
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
  • No in-field optical adjustments required
  • LED Indicators
  • IEEE 802.3 compliant
  • Lifetime Warranty

Product Description

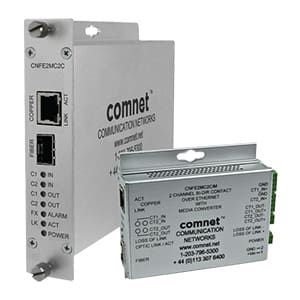

The ComNet CNFE2MC2C[/M] Ethernet media converter is designed to transmit and receive 10/100 Mbps data and two bi-directional contact closures over multimode or single mode optical fiber using sold-separately SFP modules to select distance and connector type. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. These media converters are environmentally hardened to operate in extreme temperatures. The CNFE2MC2C/M small package size is ideal for locations where space is at a premium. Packaged in the exclusive ComNet ComFit housing, the full size CNFE2MC2C may be rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
