Comnet : CNVETX1

FEATURES

  • Industrially hardened and rated to exceed the environmental (operating and storage temperature, mechanical shock and vibration, voltage transient protection) of NEMA TS-1/TS-2 for Traffic Signal Control Equipment, and other out of plant applications. Conformally-coated for deployment in humidity with condensation conditions.
  • PoE (IEEE 802.3af) or +12 VDC Operating Power. PoE interface also provides +12 VDC local camera operating power
  • User-Configurable for use as either a video encoder or video decoder.
  • Multi-Encoding: Supports H.264, MPEG-4, MPEG-2, and MJPEG video compression standards
  • High Video Quality: Up to D1 at 30 FPS. Scalable to 4CIF, CIF, and QCIF
  • Dual & Triple Video Streaming
  • Low End-to-End Latency: <135 Msec. (3-4 frames)
  • Includes ComNet IVS GUI. Live video monitoring and optional mark-ups with on-screen display
  • Integrated Premium Video Analytics Engine, with onboard rules management and responses, and video overlay display
  • Pan-Tilt-Zoom Control Channel: Local serial data port, or remote control over IP
  • Single Channel of simplex Audio with G.711 Compression, for intercom, paging and other applications
  • Optional non-volatile 32 or 64 GB micro-SD cards, for local onboard storage and recording, with continuous & event-driven modes
  • Optional Basic or Full Up analytics package
  • Supports Numerous VMS Solution providers
  • Alarm Input/Output Management and Contact Closures: Fully integrated via web interface, enterprise SNMP, and responses management user-interface
  • NTCIP Compliant
  • Rugged, small profile aluminum housing for installations where space may be at a premium
  • Ease of set-up and installation

Product Description

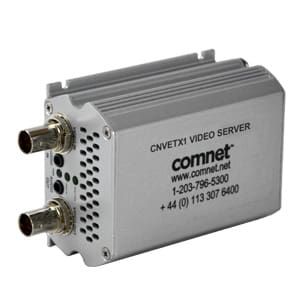

The ComNet CNVETX1 is a single-channel, camera-ready H.264/MPEG-4/MPEG-2, and MJPEG intelligent video server/video encoder or decoder unit, with video quality of up to D1 at 1 to 30 FPS, and dual or triple encoding/streaming. The CWVETX1 is industrially hardened for deployment in unconditioned/out-of-plant operating environments. It is user-configurable for use as an encoder or decoder, or the video decoding may be done with the decoding software provided. Incorporating a distributed intelligent video architecture, analog/composite video NTSC or PAL CCTV cameras with IP or full-duplex serial data pan-tilt-zoom control may be easily integrated onto any IP network. Full command and control of the various video encoding parameters are provided, including resolution, bit rate, and frame rate. A full-duplex mono audio channel is included. The ComNet IVS (Integrated Video Server) software allows for multiple simultaneous video streaming, and enables onboard video content management.
